Description
The Hot Rod Series is a versatile performer designed for the most discerning street enthusiast. Featuring lightweight die-cast aluminum components, the HR-Series offer all the tunability you would expect from more expensive racing carburetors, including changeable bleeds, idle feed, power valve channel restrictions, and four-corner idle. Offered in either vacuum or mechanical secondary models, all Hot Rod Series carburetors feature electric chokes and dual metering blocks for added performance. Now available in a 450 cfm model for applications with small displacement engines.
Specifications:
| 857 | 4 |
| Cubic Feet Per Minute Rating | 650 |
| 3390 | Performance |
| Fuel | Gasoline |
| 8783 | Square/4150 |
| Material | Aluminum |
| Brand | Quick Fuel Technology |
| 4235 | Electric |
| Choke | Electric |
| Emission Code | 3 |
| 353 | Yes |
| 4234 | Yes |
| 6449 | 65 |
| Warning | California Proposition 65 |
| Barrels | 4 |
| Billet Color | Diecast-No Billet |
| Booster | Down Leg |
| Carburetor Use | Street |
| Category | Air and Fuel Delivery |
| CFM | 650 |
| Circuit | 2 |
| Condition | New |
| Finish | Shiny |
| Fuel System | Carbureted |
| High Speed Air Bleed | 28 |
| Idle Air Bleed Size | 70 |
| Marine Use | No |
| Model | HR-Series |
| part type | Carburetor |
| Primary Main Jet | 70 |
| Primary Pump Nozzle Size | 31 |
| Product Type | Carburetor |
| Secondaries | Mechanical |
| Secondary Main Jet | 74 |
| Sub Category | Carburetion |
| Supercharged Application | No |
| Throttle Bore | 1-11/16 inch |
| Warranty | Manufacturer’s Limited 90 Day Warranty |
| 857 | 4 |
| Cubic Feet Per Minute Rating | 650 |
| 3390 | Performance |
| Fuel | Gasoline |
| 8783 | Square/4150 |
| Material | Aluminum |
| Brand | Quick Fuel Technology |
| 4235 | Electric |
| Choke | Electric |
| Emission Code | 3 |
| 353 | Yes |
| 4234 | Yes |
| 6449 | 65 |
| Warning | California Proposition 65 |
| Barrels | 4 |
| Billet Color | Diecast-No Billet |
| Booster | Down Leg |
| Carburetor Use | Street |
| Category | Air and Fuel Delivery |
| CFM | 650 |
| Circuit | 2 |
| Condition | New |
| Finish | Shiny |
| Fuel System | Carbureted |
| High Speed Air Bleed | 28 |
| Idle Air Bleed Size | 70 |
| Marine Use | No |
| Model | HR-Series |
| part type | Carburetor |
| Primary Main Jet | 70 |
| Primary Pump Nozzle Size | 31 |
| Product Type | Carburetor |
| Secondaries | Mechanical |
| Secondary Main Jet | 74 |
| Sub Category | Carburetion |
| Supercharged Application | No |
| Throttle Bore | 1-11/16 inch |
| Warranty | Manufacturer’s Limited 90 Day Warranty |
| Description_INV | Hot Rod Carburetor 650 CFM MS |

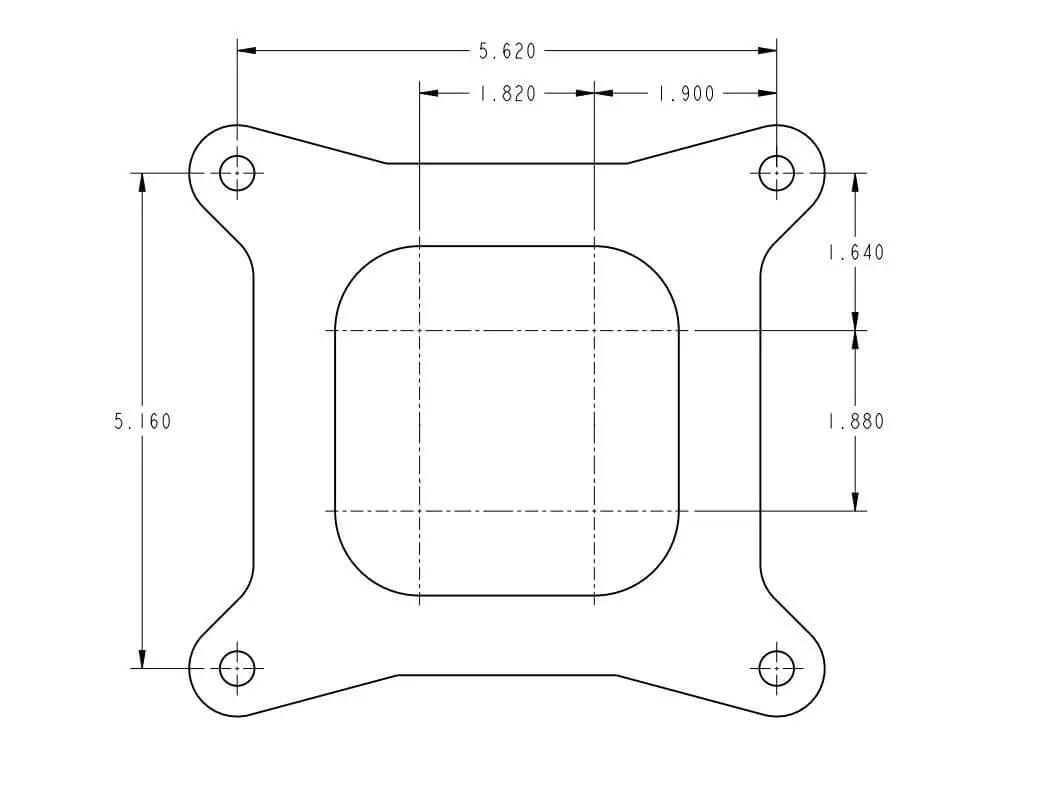

| Description_ASC | This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16″ x 5 5/8″ bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932. |
| Description_DES | HR-Series Carburetor 650CFM |
| Description_EXT | 650 CFM – 4150 – Mechanical Secondaries – Shiny – Gasoline |
| Description_MKT | The Hot Rod Series is a versatile performer designed for the most discerning street enthusiast. Featuring lightweight die-cast aluminum components, the HR-Series offer all the tunability you would expect from more expensive racing carburetors, including changeable bleeds, idle feed, power valve channel restrictions, and four-corner idle. Offered in either vacuum or mechanical secondary models, all Hot Rod Series carburetors feature electric chokes and dual metering blocks for added performance. Now available in a 450 cfm model for applications with small displacement engines. |
| Description_FAB | •All models feature a fully adjustable electric choke for easy starting |
| Description_FAB | •Dual metering blocks w/4-corner idle for smooth and efficient idle quality |
| Description_FAB | •Screw-in air bleeds and idle feed restrictions for quick and unsurpassed tuning capability |
| Description_FAB | •Dual inlet fuel bowls with sight glass windows on both fuel bowls for safe and easy float adjustment |
| Description_FAB | •Universal throttle lever with sealed throttle shafts for years of smooth operation |
| Description_FAB | •Tuneable secondary opening rate |
| Description_FAB | •Tumble polished for long lasting shine |
| Description_INV | Hot Rod Carburetor 650 CFM MS |
| Description_ASC | This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16″ x 5 5/8″ bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932. |
| Description_DES | HR-Series Carburetor 650CFM |
| Description_EXT | 650 CFM – 4150 – Mechanical Secondaries – Shiny – Gasoline |
| Description_MKT | The Hot Rod Series is a versatile performer designed for the most discerning street enthusiast. Featuring lightweight die-cast aluminum components, the HR-Series offer all the tunability you would expect from more expensive racing carburetors, including changeable bleeds, idle feed, power valve channel restrictions, and four-corner idle. Offered in either vacuum or mechanical secondary models, all Hot Rod Series carburetors feature electric chokes and dual metering blocks for added performance. Now available in a 450 cfm model for applications with small displacement engines. |
| Description_FAB | •All models feature a fully adjustable electric choke for easy starting |
| Description_FAB | •Dual metering blocks w/4-corner idle for smooth and efficient idle quality |
| Description_FAB | •Screw-in air bleeds and idle feed restrictions for quick and unsurpassed tuning capability |
| Description_FAB | •Dual inlet fuel bowls with sight glass windows on both fuel bowls for safe and easy float adjustment |
| Description_FAB | •Universal throttle lever with sealed throttle shafts for years of smooth operation |
| Description_FAB | •Tuneable secondary opening rate |
| Description_FAB | •Tumble polished for long lasting shine |
