Description

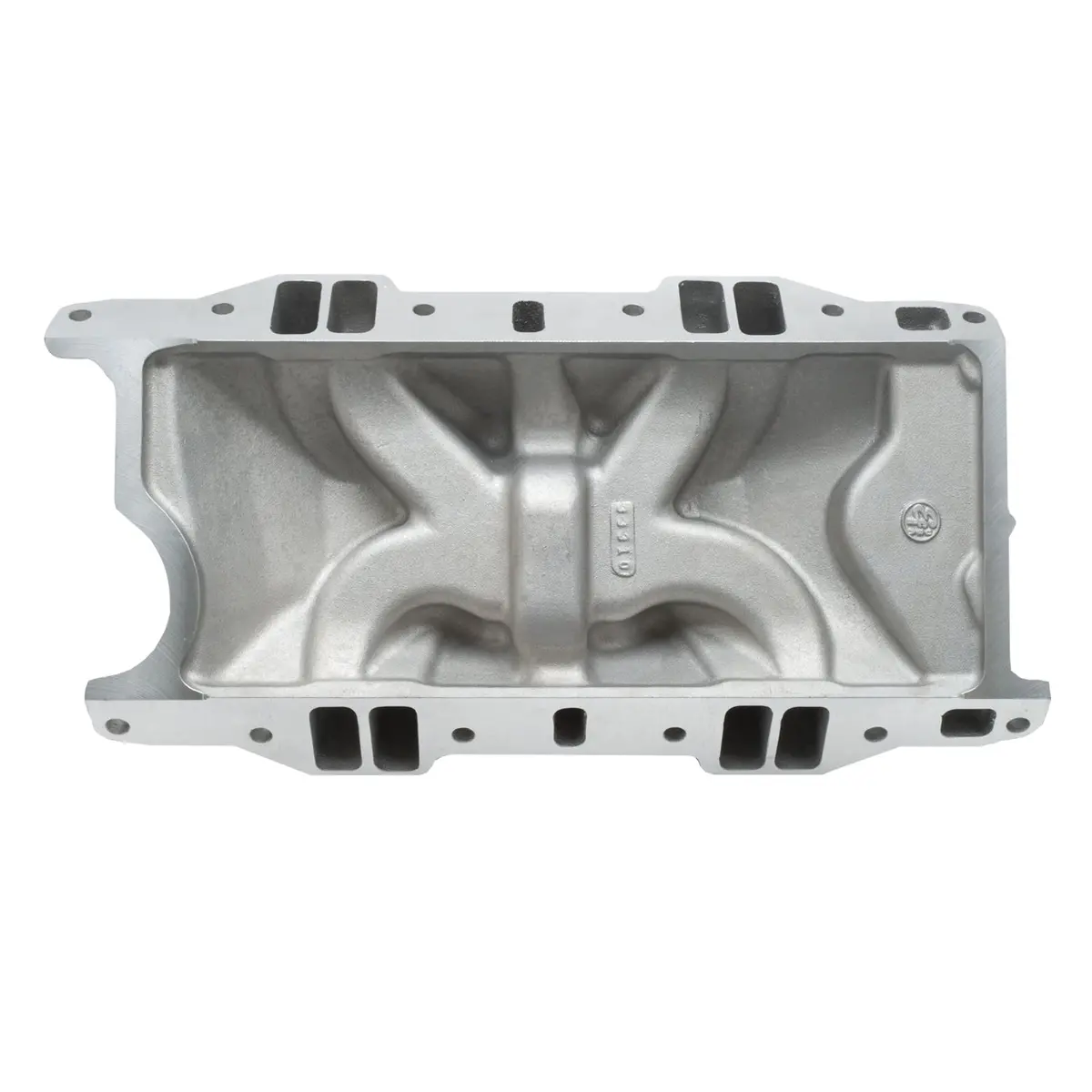

Edelbrock part #7176 Performer RPM intake manifold is designed for 340-360 c.i.d. Chrysler V8’s and 318 c.i.d. engines with 340-360 cylinder heads. Latest technology in dual-plane design results in both excellent low-rpm torque and outstanding high rpm horsepower. Recommended for high-performance street, strip and fresh water marine applications. Accepts 1975 and earlier waterneck only. Will not accept stock Thermo-Quad carburetor. Will not fit 1992 and later Magnum engines. Match with Performer RPM heads #60779 for maximum performance.
Specifications:
| Vehicle Model | Chrysler |
| Center Maximum Height | 5.350 |
| EGR Port | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Satin |
| Gasket Or Seal Included | No |
| Front Maximum Height | 4.900 |
| Single Or Dual Plane Type | Dual |
| Rear Maximum Height | 5.800 |
| CNC Ported | No |
| Basic Operating RPM Range | 1500-6500 |
| Series | Performer RPM |
| Grade Type | Performance |
| Material | Aluminum |
| Flange Type | 4150 |
| Description_ABR | Intake Mnfld |
| Description_INV | Performer RPM 360 Chrysler Intake Mnfld |
| Description_LAB | Performer RPM Small Block Chrysler Intake Manifold |
| Description_ASM | Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_EXT | Edelbrock Performer Intake Manifold for 318-340-360 Chrysler Small Block LA engines |
| Description_MKT | Edelbrock part #7176 Performer RPM intake manifold is designed for 340-360 c.i.d. Chrysler V8’s and 318 c.i.d. engines with 340-360 cylinder heads. Latest technology in dual-plane design results in both excellent low-rpm torque and outstanding high rpm horsepower. Recommended for high-performance street, strip and fresh water marine applications. Accepts 1975 and earlier waterneck only. Will not accept stock Thermo-Quad carburetor. Will not fit 1992 and later Magnum engines. Match with Performer RPM heads #60779 for maximum performance. |
| Description_TRA | Recommended intake gasket: Edelbrock #7276, Fel-Pro #1213, Chrysler #4397642 (or equivalent) for 340 & 360. |
| Description_TRA | Manifold height: A-4.9″, B-5.8″ |
| Description_TRA | Carb pad height: 5.35″ |
| Description_TRA | Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm. Use #1481 or #1843 throttle/transmission lever kit. |
| Description_TRA | Port exit dimensions: 1.01″ x 2.17″ |
| Description_TRA | 1979 and later rotary A/C compressor will not clear waterneck |
| Description_TRA | Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA | Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_DEF | Engine Intake Manifold |
