Description
Upgrade your van’s functionality and comfort with the VWD Dual Fan Half-Slider Passenger Side Bunk Window (VW3310RF), designed to provide superior ventilation and privacy. This universal-fit window is the perfect solution for adding a fresh air source to your van’s cargo or bunk bed area. It can be installed on fiberglass extensions such as VanSpeed Capsules, FlareSpace, or directly onto the van wall, offering a versatile option for any van conversion project. The window’s sleek design and matte finish also add a touch of elegance to your van’s interior.
Features
- Designed to fit universally with campervan and RV installation
- Designed for Passenger Side installation

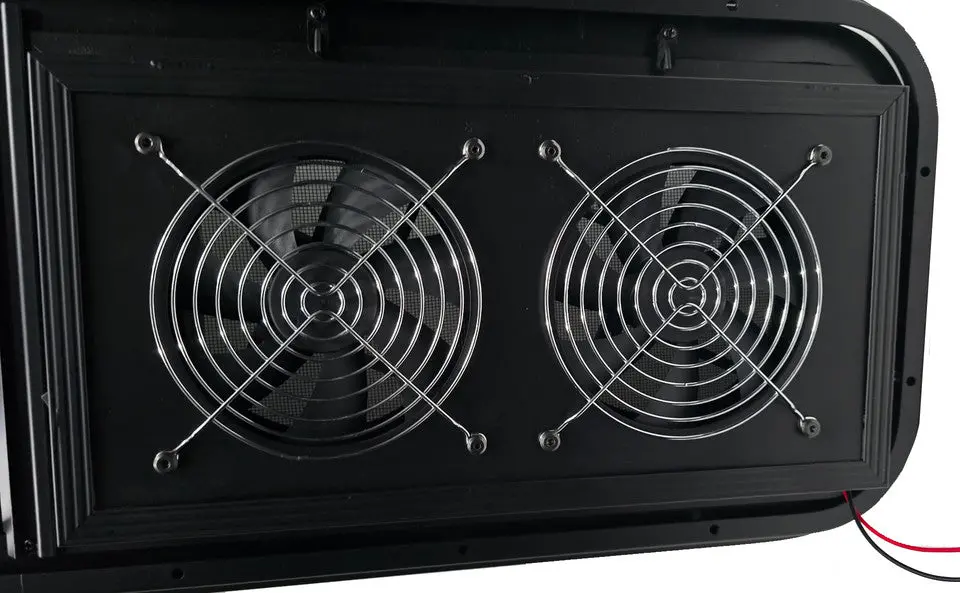

- Quiet dual fans – Only 58db at 12in!
- Color = Solar Privacy Glass
- UV Rating = 17%
- Outside Frame Dimensions: 34″ x 11″
- Cut-Out Dimensions: 33″ x 10″
- Clamp Ring Size: 1/8″
- Slider Opening 14″ x 7-3/4″
- Installation Type = Clamp Ring
- Clamp Ring Size: 1/8″
- 12V , Switched Dual Fans (Exhaust)
- Mfg Country = China
- Mfg Warranty = 1 Year
Specifications
|
Product Overall Dimensions(Outside Frame) |
34″ W x 11″ H |
|
Cutout Dimensions |
33″ W x 10″ H |
|
Slider Opening Dimensions |
14″ W x 7-3/4″ H |
|
Clamp ring size |
1/8″ |
|
Frame Material/Color |
Painted Aluminum / Black |
|
Glass Color/UV Rating |
Solar Privacy / 17% |
|
Fan(s) power supply |
12VDC |
|
Amps |
0.21A(appr) |
|
Decibels |
Only 58db at 12in |
|
Fan settings |
Low/High, dual-switch |
|
Fan direction |
Exhaust(pulls air out of vehicle) |
|
Fan speed |
2100 RPM /325 CFM(High) |
Note: This item offers an exhaust fan feature only. It does not pull air inward. Modification has not been tested and not recommended.
