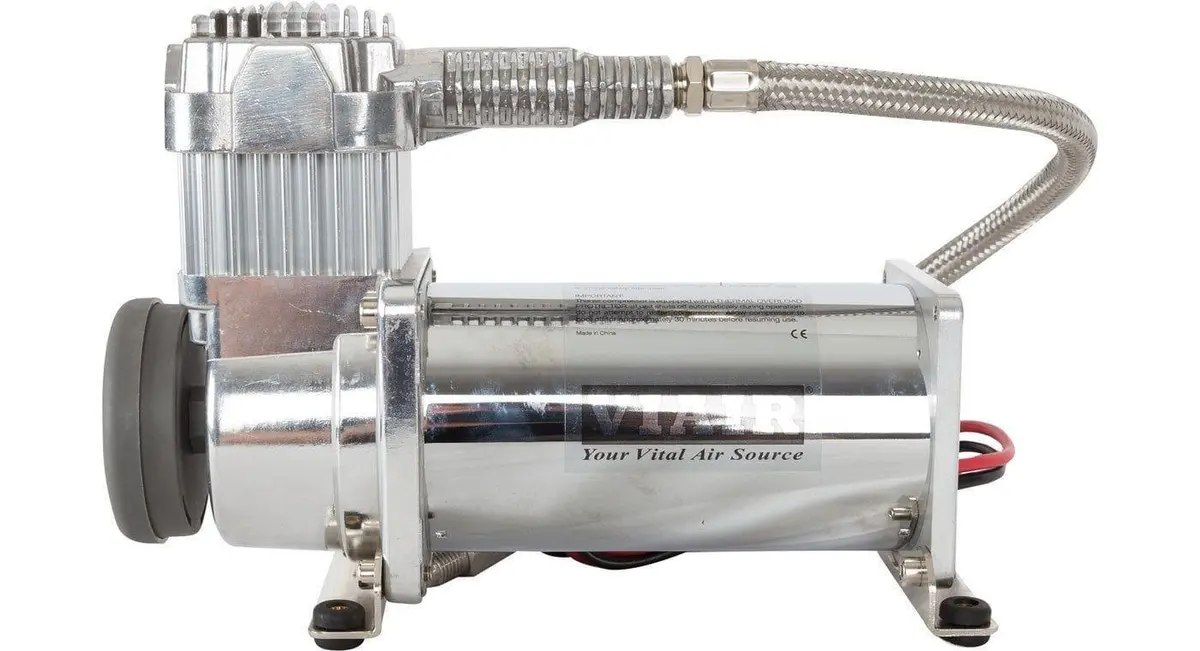

Viair 400C Portable 12V Air Compressor

Description

Description

FASTER THAN A LOOTER WITH A TV

Speed meets efficiency with the Viair 400C Air Compressor. Ideal for powering train horns, air horns, and even light tire inflation, this compressor packs a punch with a fast 2.62 CFM and only 28 amps of power draw. Recharge your 2.5-gallon tank from 110-150 PSI in just 48 seconds or your 5-gallon tank in 1 minute and 40 seconds.

• Permanent Magnetic Motor
• Oil-less Design
• High-Performance PTFE Piston Ring
• Stainless Steel Valves
• Moisture & Dirt Resistant
• Gearless Direct Drive Motor
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Mounting Plates with Vibration Isolators
• Stainless Steel 1/4″ Braided Leader Hose
• Remote Mountable Intake Filter Assembly
• Insulated Wiring with Connectors

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

Performance Data & Fill Rates

PSI	CFM	A	BAR	LPM	A
0	2.62	16	0	74.0	16
10	2.39	18	1.0	65.0	20
20	2.21	20	2.0	60.0	23
30	2.11	22	3.0	56.0	25
40	2.01	24	4.0	53.0	27
50	1.93	25	5.0	49.0	28
60	1.84	26	6.0	46.0	28
70	1.73	27	7.0	42.0	28
80	1.65	27	8.0	38.0	28
90	1.52	27	9.0	35.0	27
100	1.45	27	10.0	31.0	27
110	1.35	27
120	1.26	27
130	1.19	27
140	1.08	27
150	1.01	26

 * Supply Voltage: 13.8 Volts

2.5 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 27 sec. (± 05 sec.)
85 to 105 PSI	21 sec. (± 03 sec.)
0 to 145 PSI	2 min. 20 sec. (± 05 sec.)
110 to 145 PSI	48 sec. (± 03 sec.)
5.0 GALLON TANK	FILL RATE
0 to 105 PSI	2 min. 55 sec. (± 10 sec.)
85 to 105 PSI	45 sec. (± 05 sec.)
0 to 145 PSI	4 min. 50 sec. (± 10 sec.)
110 to 145 PSI	1 min. 40 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

Diagrams & Manuals

• Viair 400C Air Compressor Manual
• Viair 400C Air Compressor Wiring Diagram
• Viair 400C Air Compressor Dimensional Drawing

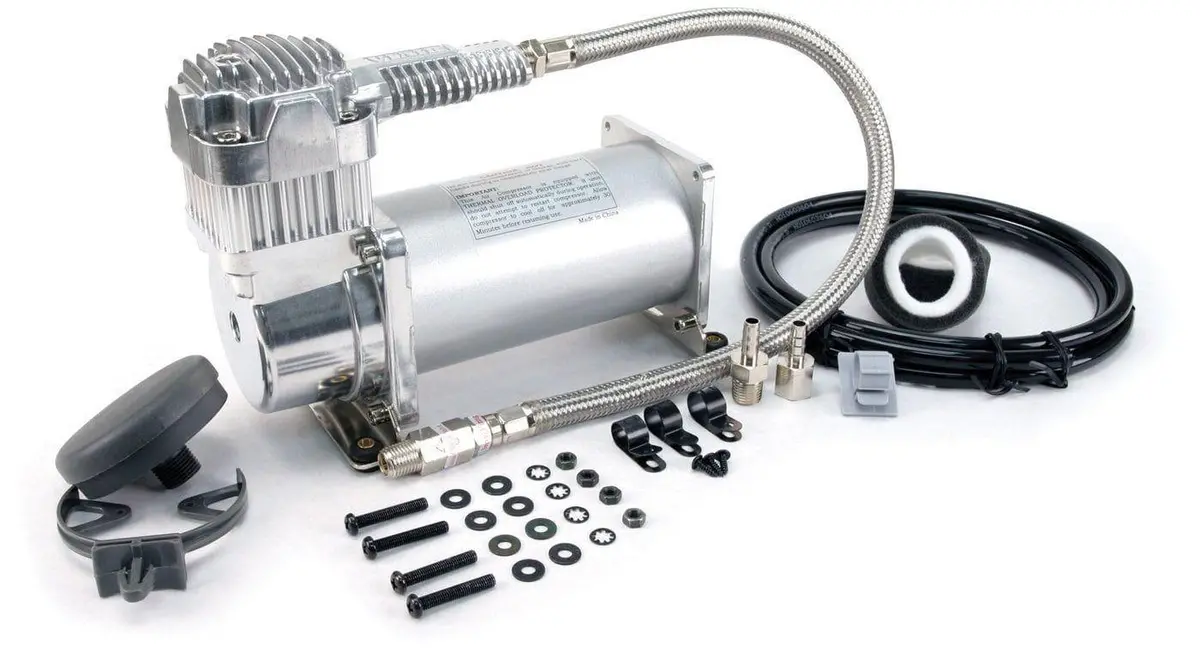

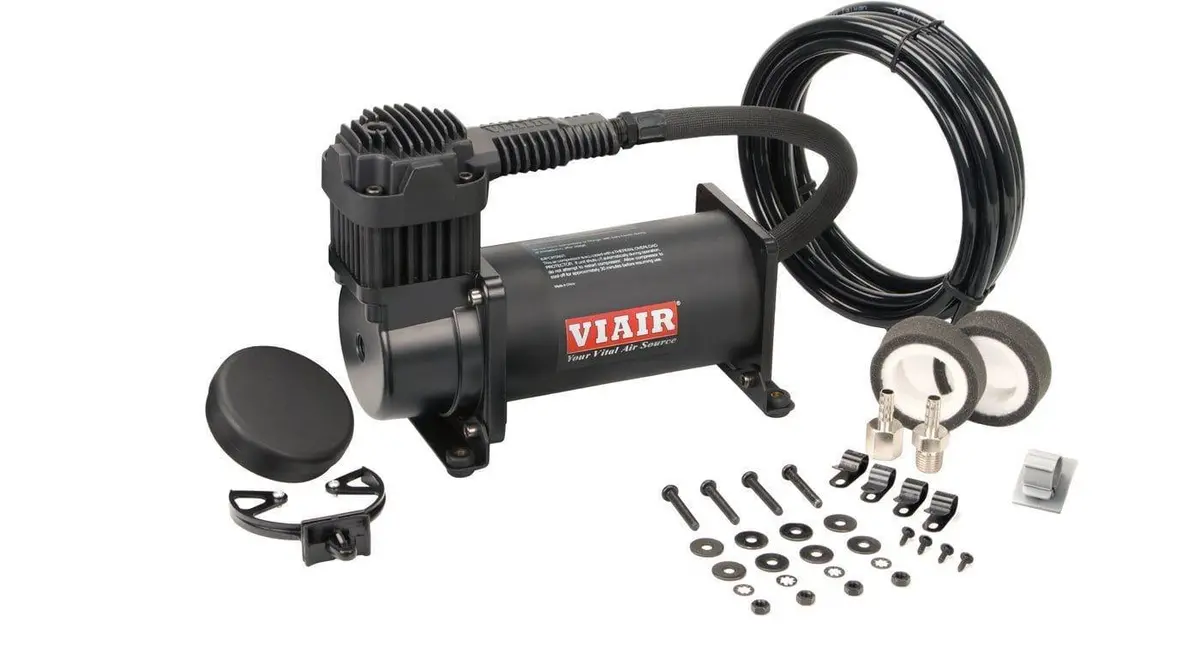

Includes

• Viair 400c Air Compressor
• 1/4″ NPT Stainless & Black Braided Leader Hose & Check Valve
• Remote Mountable Two-Stage Air Filter
• Replacement Filter Elements
• 1 Year ManufactureR’s Defect Warranty
• Mounting Hardware

Specifications

SPECIFICATION
Part Number	AC-400C, AC-400K
Manufacturers Part Number	40040, 40048
Voltage	12 Volts DC
Max Amperage	30 Amps
Maximum Duty Cycle	33% @ 100 PSI
Maximum Pressure	150 PSI
Max Tank Size	5 Gallons
CFM @ 0 PSI	2.62 CFM
Length	9″ (228.6 mm)
Width	4″ (101.6 mm)
Height	6.75″ (171.5 mm)
Weight	6.95 lb (3.15 Kg)
