Description
Brand: FuelTech
Manufacturer’s Part Number: 3010003329
Part Type: Ignition Boxes
Product Line: FuelTech SparkPRO Ignitions
Automotive Fittings Part Number: FCH-3010003329
Ignition Box Output: Capacitive discharge
Circuitry: Digital
Rev Limiter: No
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 430 V
Minimum Operating Voltage: 9 V
Maximum Operating Voltage: 20 V
Length (in.): 3.700 in.
Height (in.): 1.400 in.
Width (in.): 4.700 in.
Ignition Box Color: Black
Coil Included: No
Warranty: 1-year
Quantity: Sold individually.
Notes: Cannot be used with stock ECU.
Description:

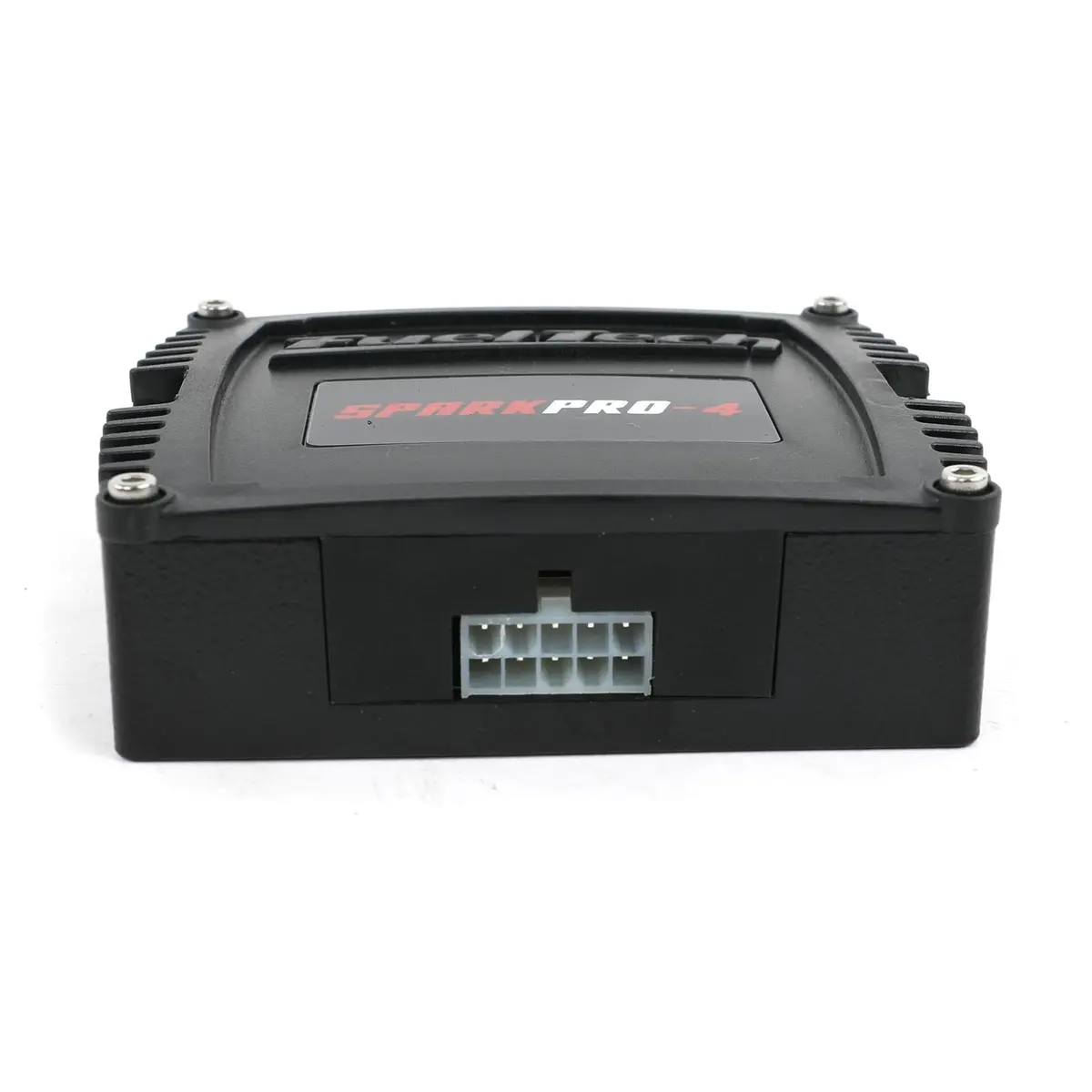

FuelTech SparkPRO ignitions are available in versions from one to eight ignition outputs. They feature high-energy inductive ignition to be used with ignition coils without igniter (dumb coils). The modules deliver high voltage at the coil’s primary, up to 430 V.
Additional details:
* Each SparkPRO channel can be connected to only one coil at a time
* Compatible with any programmable ECU that has dwell control
* Cannot be used with stock ECU
* Dimensions: 115 x 90 x 33mm
Kit contents:
* One SparkPRO ignition
* One operation and installation guide
* One 6.5 ft. SparkPRO unterminated harness (optional)
* One FuelTech black carbon fiber sticker
