Description

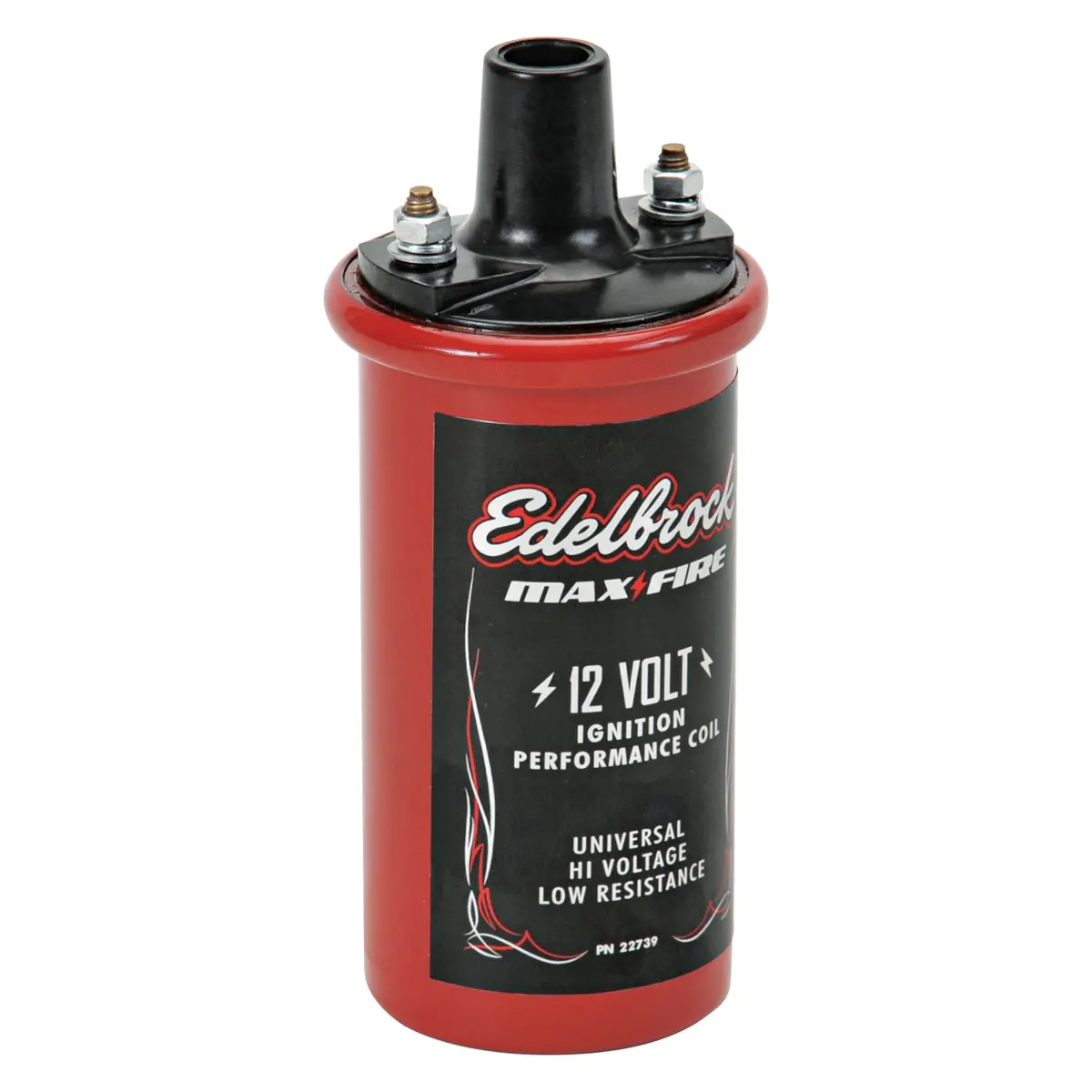

Edelbrock Ignition Coil #22739 is a universal 12-volt cannister-style coil designed as a high-quality direct bolt-on replacement for OEM ignition coils. This advanced coil has a primary resistance of 1.4 ohms with an output of 42,000 volts. Internally, each Edelbrock Coil features heavy-duty primary and secondary windings for higher energy and greater spark that can help to provide quicker starts with improved idle quality. With a durable oil-filled housing, Edelbrock Coils are resistant to heat, shock and vibration with an effective operating range of 0 to 6,500 RPM.
Specifications:
| Terminal Type | Socket |
| Terminal Quantity | 1 |
| Mounting Bracket Included | No |
| Voltage | 12V |
| Coil Wire Included | No |
| Oil Filled | Yes |
| Mount Type | Plug |
| Ratio | 94:1 Turns |
| Coil Shape | Round |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Mounting Position | Cylinder Head |
| Maximum Voltage | 42000 |
| Mounting Hardware Included | No |
| Requires External Resistor | No |
| 7642 | 6500 |
| Material | Steel |
| Connector Gender | Male |
| Terminal Gender | Female |
| Quantity | Sold Individually |
| Ignition Type | Distributorless |
| Primary Resistance | 1.4 |
| Coil Type | Canister |
| Secondary Resistance | 9.2 |
| Description_ABR | Igntion Coil |
| Description_INV | Edelbrock Ignition Coil #22739 |
| Description_LAB | Ignition Coil #22739 12V Cannister Style, 1.4 Ohm Primary Resistance |
| Description_DES | Universal 12V cannister-style w/ primary resistance 1.4 ohms & output of 42000V. |
| Description_EXT | Edelbrock Ignition Coil #22739 is a universal 12-volt cannister-style coil designed as a high-quality direct bolt-on replacement for OEM ignition coils. This advanced coil has a primary resistance of 1.4 ohms with an output of 42,000 volts. |
| Description_MKT | Edelbrock Ignition Coil #22739 is a universal 12-volt cannister-style coil designed as a high-quality direct bolt-on replacement for OEM ignition coils. This advanced coil has a primary resistance of 1.4 ohms with an output of 42,000 volts. Internally, each Edelbrock Coil features heavy-duty primary and secondary windings for higher energy and greater spark that can help to provide quicker starts with improved idle quality. With a durable oil-filled housing, Edelbrock Coils are resistant to heat, shock and vibration with an effective operating range of 0 to 6,500 RPM. |
| Description_DEF | Ignition Coil |
