Description

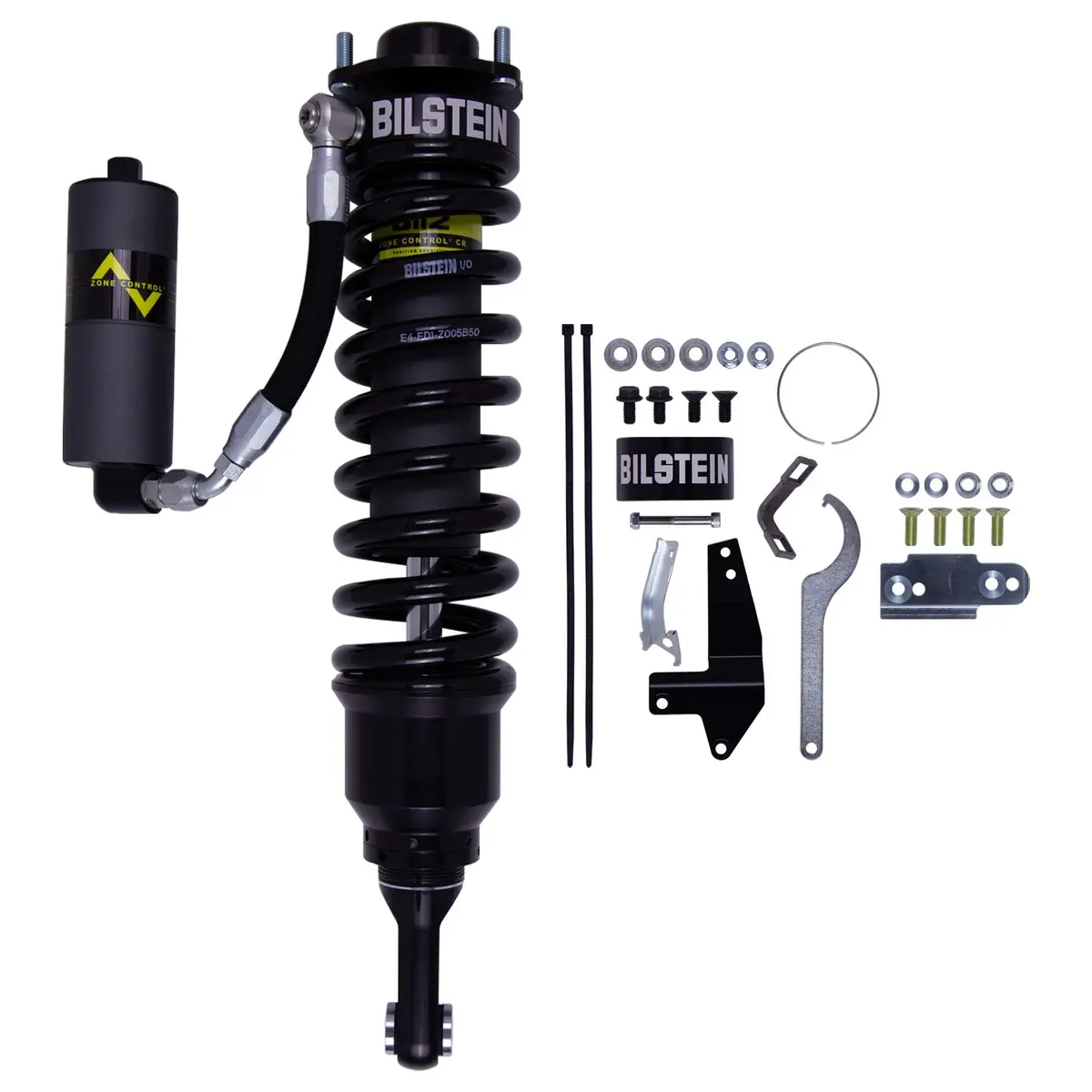

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Specifications:
| Boot Included | No |
| Internal Design | Monotube |
| Series | B8 8112 (ZoneControl CR) |
| Collapsed Length (IN) | 18.45 |
| Body Diameter (ID) | 60mm |
| Adjustable Damping | Non-Adjustable |
| Upper Mount Type | Special |
| Body Design | Smooth Body (Coilover) |
| Finish | Dampers: EVO Grey/Springs: Black |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Title | Bilstein Shock Absorbers |
| Lower Mount Type | Crossbar |
| Body Material | Steel |
| Extended Length (IN) | 23.22 |
| Collapsed Length (MM) | 468.7 |
| Spring Seat Included | Yes |
| Extended Length (MM) | 589.8 |
| Reservoir | Yes |
| Prop 65 (Y/N) | Y |
| Prop 65 – Short Label | WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov |
| Description_ASM | Ford F-150 2024-2015 |
| Description_FAB | ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons |
| Description_SHO | Front Corner Module |
| Description_DEF | Suspension Shock Absorber and Coil Spring Assembly |
| Description_DES | B8 8112 (ZoneControl CR) – Front Left Corner Module |
| Description_EXT | 60mm Front Left Corner Module |
| Description_INV | Ford F150 4WD; ’15-21+; FL; B8 8112 EVO |
| Description_LAB | B8 8112 (ZoneControl CR) – Front Left Corner Module |
| Description_MKT | Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs. |
| Description_FAB | Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs |
| Description_FAB | Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs |
