Description

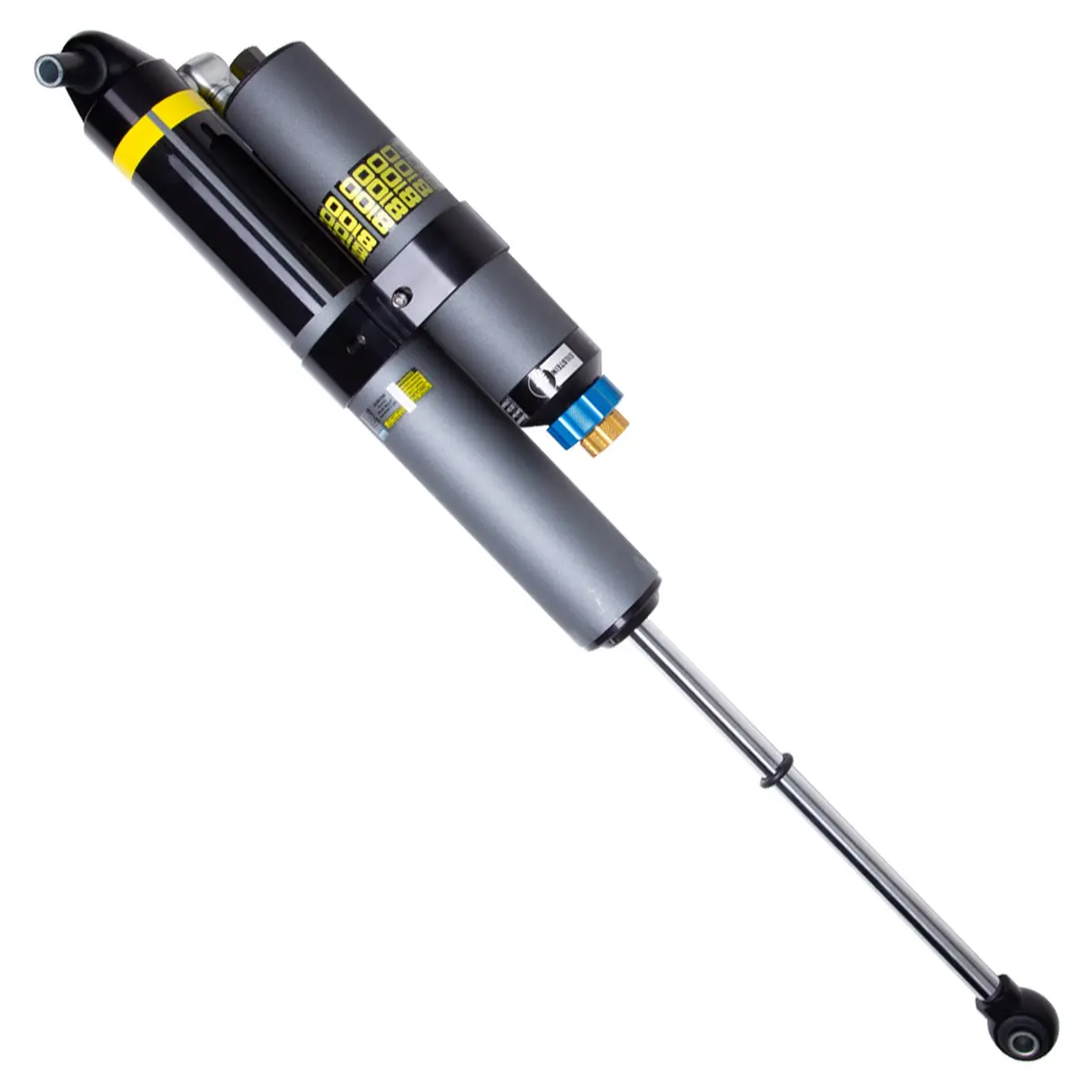

The Bilstein B8 8100 (DSA) reservoir shock absorber is an adjustable large bore 60mm direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (DSA) will allow you to tame the terrain in comfort.
Specifications:
| Prop 65 (Y/N) | Y |
| Segment | Light Truck |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression |
| Title | Bilstein Shock Absorbers |
| Collapsed Length (IN) | 19.49 |
| Internal Design | Monotube |
| Upper Mount Type | Eye 12.8mm |
| Body Design | Bypass Body (Non-Coilover) |
| Extended Length (IN) | 32.01 |
| Body Diameter (ID) | 60mm |
| Prop 65 – Short Label | WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov |
| PartType | Shocks / Struts |
| Lower Mount Type | Eye 12.8mm |
| Boot Included | No |
| Finish | EVO Grey |
| Extended Length (MM) | 813.0 |
| Series | B8 8100 (DSA) |
| Reservoir | Yes |
| Collapsed Length (MM) | 495.0 |
| Spring Seat Included | No |
| Description_FAB | Direct fit for an easy installation |
| Description_SHO | Shock |
| Description_DEF | Suspension Shock Absorber |
| Description_DES | B8 8100 (DSA) – Suspension Shock Absorber |
| Description_EXT | 60mm Shock Absorber |
| Description_INV | JEEP JL; ’18+; RR;B8 8100 DSA EVO;3-4.5 |
| Description_LAB | B8 8100 (DSA) – Suspension Shock Absorber |
| Description_ASM | Jeep Wrangler 2024-2018 |
| Description_MKT | The Bilstein B8 8100 (DSA) reservoir shock absorber is an adjustable large bore 60mm direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (DSA) will allow you to tame the terrain in comfort. |
| Description_FAB | 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control |
| Description_FAB | Direct fit for an easy installation |
